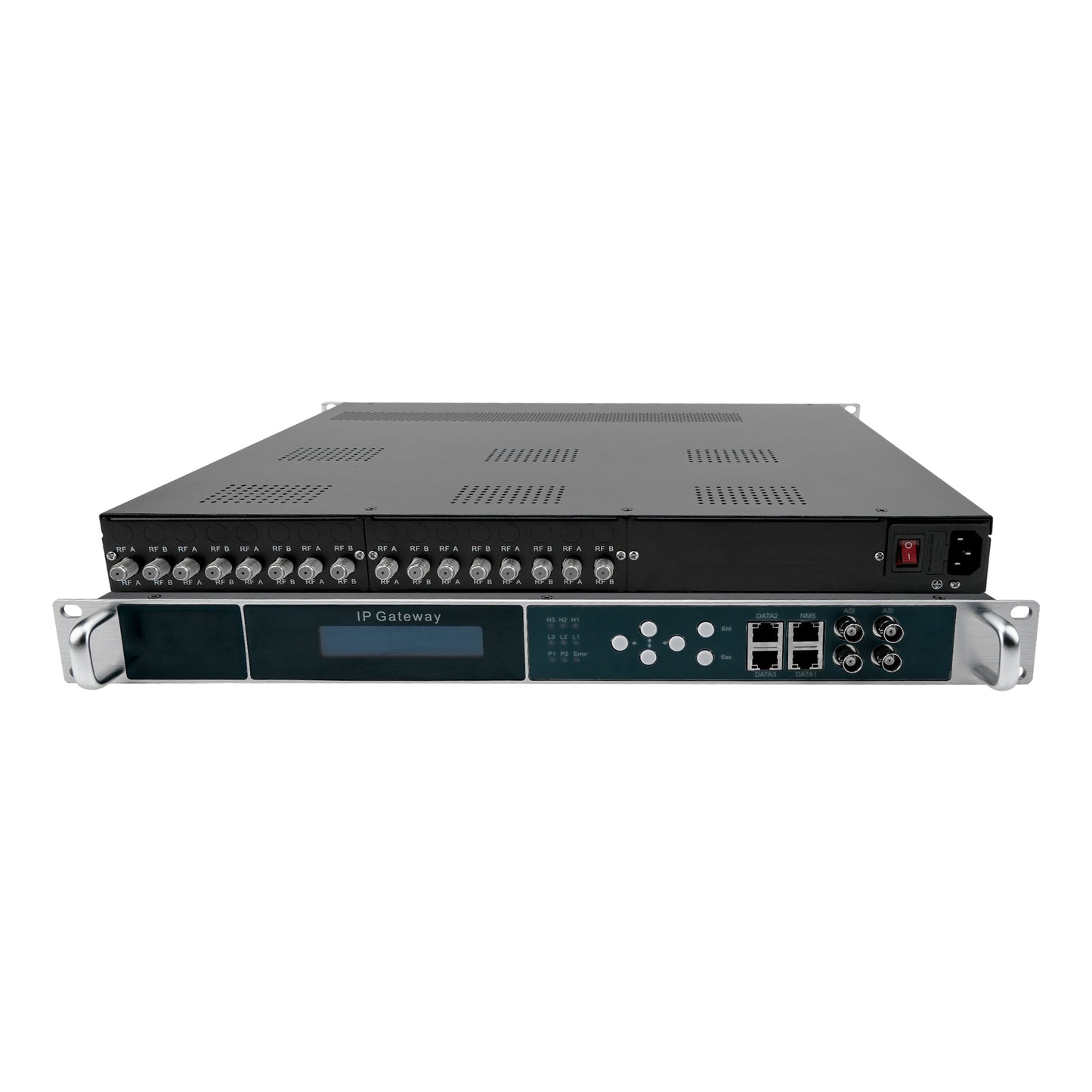

DMB-90E DVB Over IP Demodulator DVB-SS2 to HTTP SRT HLS Gateway

DVB Over IP Demodulator DVB-SS2 to HTTP SRT HLS Gateway

Model Number: DMB-90E

Overview

DMB-90E Series Multi-channels Professional Receiver, support 24 Independent Satellite DVB S/S2/S2X tuners/DVBT/ATSC/ISDB-T input to IP TS SPTS multicast or unicast outputs, has also 2 ASI inputs for external TS's sources. It is integrated with tuner demodulation, which can demodulates from 4/ 8/ 12/ 16/ 20/ 24 channel tuners, then output the IP package through different IP address and ports.

The tuners support DVB-S/S2/S2X/T/T2/C/ISDB-T/ATSC optional input, demodulate to TS and encapsulated output IP packet, IP with 3 Gigabit IP input/output (DATA1:IP output over RTMP/HTTP/RTSP/HLS/SRT protocol ;DATA2: IP output over UDP/RTP protocol; DATA3: 128 IP address inputs.

FEATURES

Input Version: 1: Up to 24 FTA Tuners input
2: Two*Types Tuners+HDMI input-- for example: 8 DVB-S/S2/S2X+8*DVB-T/T2+8*HDMI
3: One type tuner+ HDMI input: 12 DVBS/S2/S2X+8*HDMI
Max 24 channels input whatever which types input, pls consult with sales according your application.
2 Different Tuner standard option from DVB-S/S2/S2X, DVB-T/T2, DVB-C, DTMB, ISDB-T/Tb, ATSC-T
Operation via LCD Screen and Web Management: Easy to read LCD color front panel that makes it easy to setup and monitor your channels, check firmware, and identify IP addresses without a computer.
3 Gigabit IP input/output (DATA1:IP output over RTMP/HTTP/RTSP/HLS/SRT protocol ;DATA2: IP output over UDP/RTP protocol; DATA3: 128 IP address inputs,
Two separate ASI input for external TS multiplexing
GigE DATA port can be used for input and output
Capable of BISS descrambling
Low cost headend receiver for IPTV/OTT System
Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≥ 50000 Hours
Highly compact, High-Integrate
24*7 hours working stable, broadcasting quality

DVB-S/S2/S2X Tuner
Input frequency: 950-2150Mhz
Symbol rate: 1~54MSps (DVB-S QPSK)
1~60MSps (DVB-S2/S2X QPSK)
1~60MSps (DVB-S2/S2X 8PSK)
1~58MSps (DVB-S2/S2X 16APSK)
1~55MSps (DVB-S2/S2X 32APSK)
1~34MSps (DVB-S2/S2X 64APSK)
Signal strength: -65 ~ -25dBm
Half SyQuest Baseband filler (Roll off factor):
0.35 for DVB-S
0.15 to 0.35 for DVB-S2
0.05 to 0.35 for DVB-S2X
FEC demodulation: 1/2, 2/3, 3/4, 5/6, 7/8 (DVB-S QPSK)
1/4, 1/3, 2/5, 1/2, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (DVB-S2 QPSK)
3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (DVB-S2 8PSK)
2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (DVB-S2 16APSK)
3/4, 4/5, 5/6, 8/9, 9/10 (DVB-S2 32APSK)
11/15, 7/9, 4/5, 5/6 (DVB-S2X 64APSK)
Demodulation mode: QPSK, 8PSK, 16APSK, 32APSK (Only DVB-S2)
LNB polarity selection: Vol 0, 13V, 18V Selectable
LNB band selection tone: 0/22Khz Selectable
Input Impedance: 75 Ω
FEC (Code Rate): 1/2, 2/3, 3/4, 5/6, 7/8
DiSEqC: DiSEqC 2.0 compliant

 DVB-ASI Input

Multiplexing

ASI I/O

IP I/O

System
