DMB-5100E RTMP SRT HLS to 16 ISDB-T Modulator Digital RF Modulator

DMB-5100E HTTP HLS SRT RTMP to 16 DVB-T Modulator

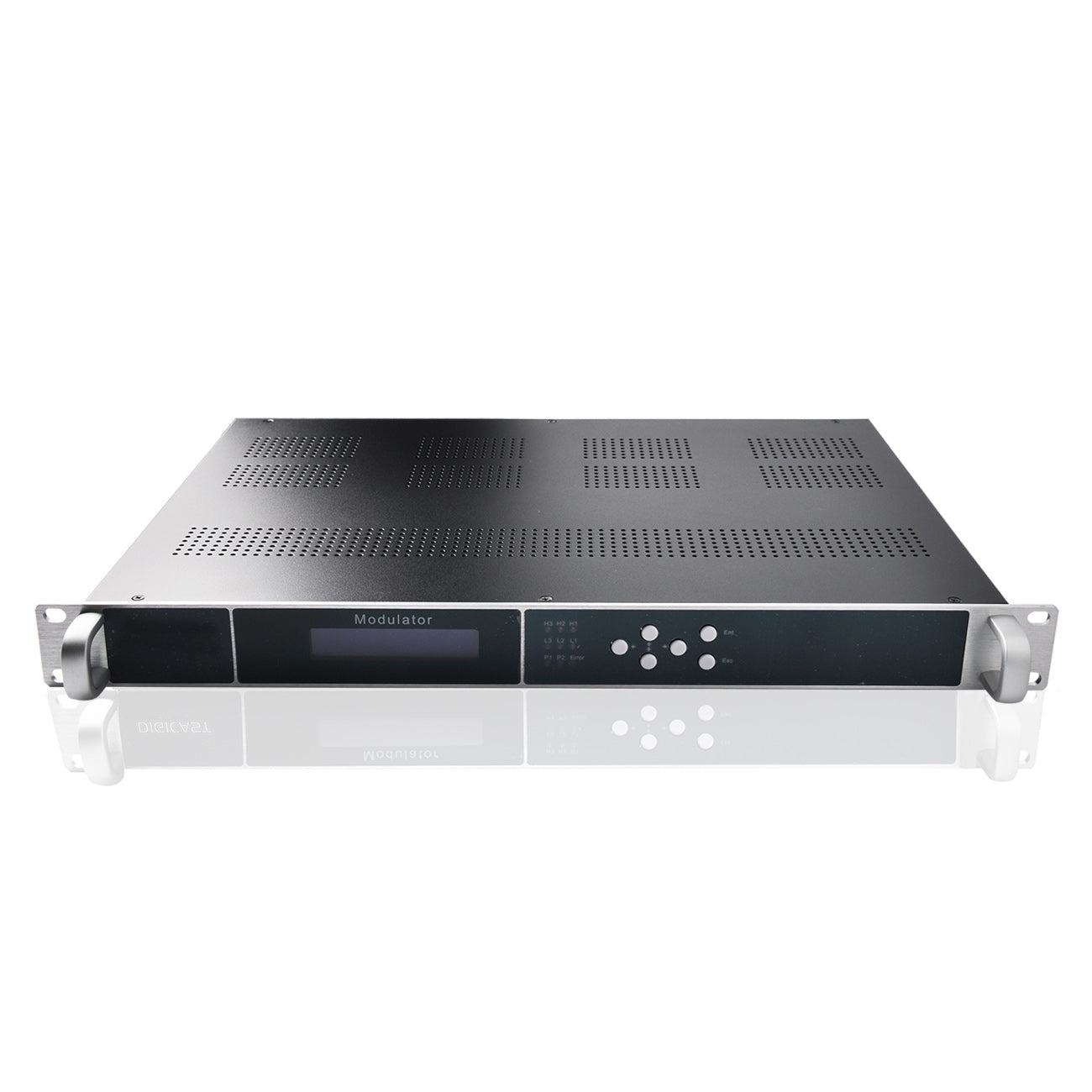

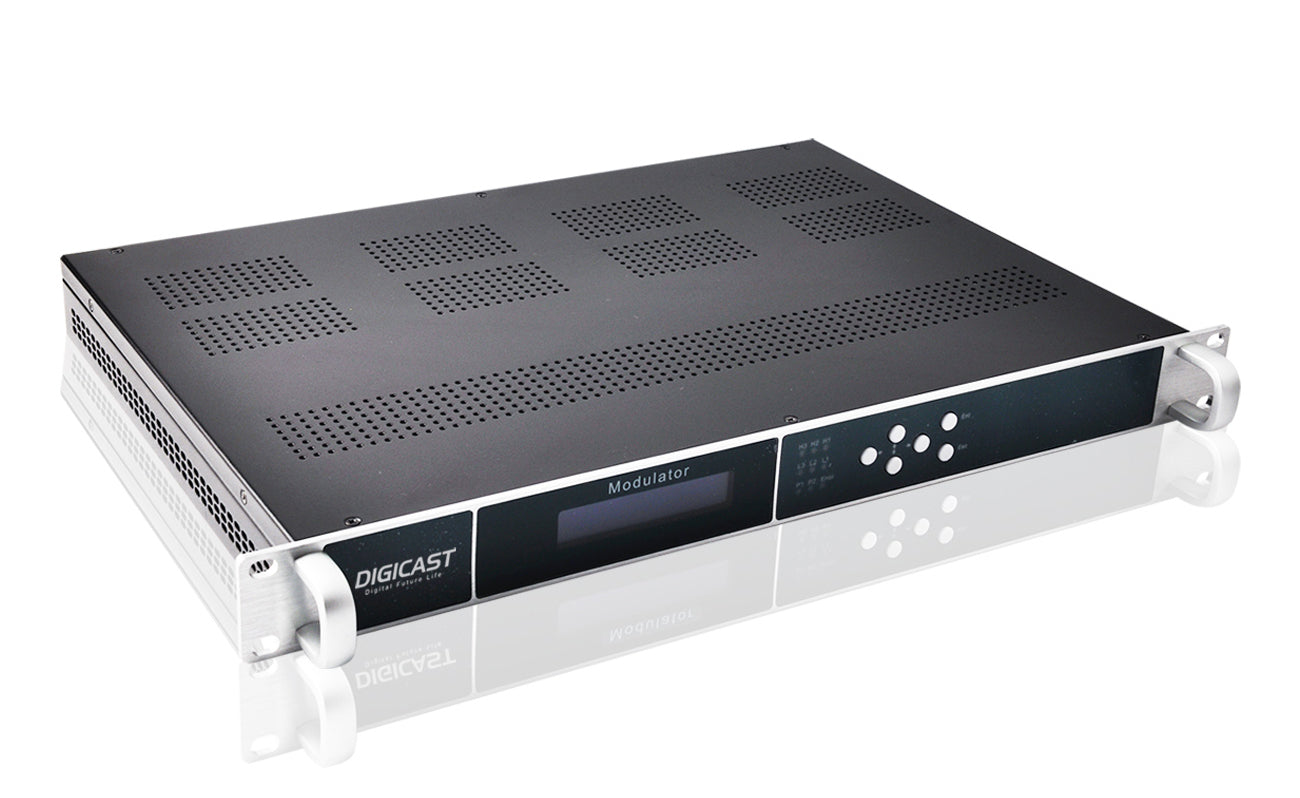

Model Number: DMB-5100E

Overview

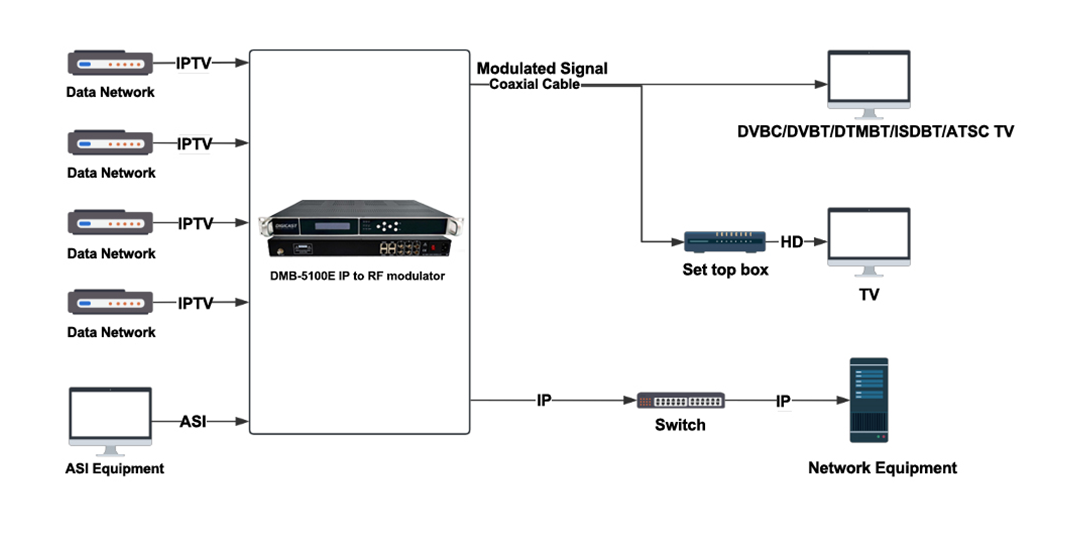

 DMB-5100E is a simple all-in-one utility device gathering IP Transport Streams of RTMP/HTTP/RTSP/HLS/SRT by Data 1 Gigabit Data ports input, Data 3 UDP/RTP input, data 2 8*MPTS UDP/RTP Out, also support 6*ASI input, then modulate IP and ASI into 8/12/16/24*ISDB-T/DVB-T/ATSC or 16/32*DVB-C Non-adjacent RF Carriers output. DMB-5100E can be used for create your own IPTV Programs to RF head-end, it is the perfect solution for any DTV Broadcasting Application.

FEATURES

 Includes 3xGigabit Ethernet DATA Ports for IP input and output
Supports RTMP/HTTP/RTSP/HLS/SRT input(DATA1),UDP/RTP input(DATA3)
Supports 8 MPTS output (DATA2,UDP/RTP)
Receive up to hundreds of ip streams, re-multiplex them as wanted, and output up to 24 DVB-T/ATSC/ISDB-T multi-channel RF Frequencies with the ability to distribute hundreds of SD HD programs over Coax/terrestrial transmission.
Support 8/12/16/24*RF of DVB-T/ATSC/ISDB-T/DTMB or 16/32 QAM DVB-C out optional

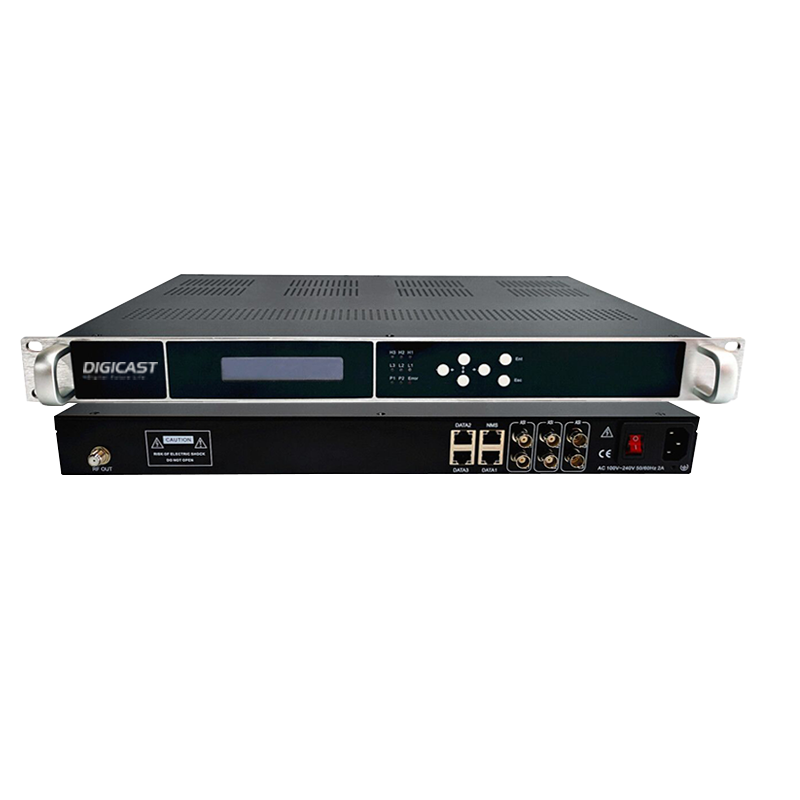

Front panel: L1/L2/L3/H1/H2/H3 indicator light for 6*ASI input
Integrated multiplexing and modulating functions
Web management for easy online access and management,upgrade
 Up to 180 PIDs per channel with PID remapping
Superior Shoulders and Excellent modulation, quality MER≥37dB
Low power consumption, high reliability with MTBF (Mean Time Between Failure) ≥50000 Hours

IP STREAM INPUT
2 IP inputs (DATA1: RTMP/HTTP/RTSP/HLS/SRT input; DATA3: UDP/RTP input)
Transmission Rate Max 800Mbps for each input
IP STREAM OUTPUT
Support: 8*IP MPTS output from DATA 2 Port
ASI STREAM INPUT
Support: 6*ASI input
Connector: BNC female, 75Ω
Signal Level: 200-800mVp-p
Packet Length: 188 bytes
Maximum bit-rate: per port≤100Mbps

Capable of PSI/SISDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT InsertGENERAL OPTIONSCONTROL AND MONITORINGl
