High cost-effective 3U 16 Channels HDMI IP streaming Encoder

High cost-effective 3U 16 Channels HDMI IP streaming Encoder

High cost-effective 3U 16 Channels HDMI IP streaming Encoder

Model number: DMB-8916A-L

OVERVIEW

The DMB-8916A-L HD encoder is a 3U rack mount 16 channels professional machine room equipment ,it has the function of encoding four streams simultaneously. HDMI video source encoding can be compressed into a network stream, and long-distance HD transmission,it broadcast of video can be realized over the Internet or LAN through a wired network.With newest technology SNLP (option) push streaing over WAN,Ultra-low latency across the network ≤ 300ms viewing.


VIDEO Input:

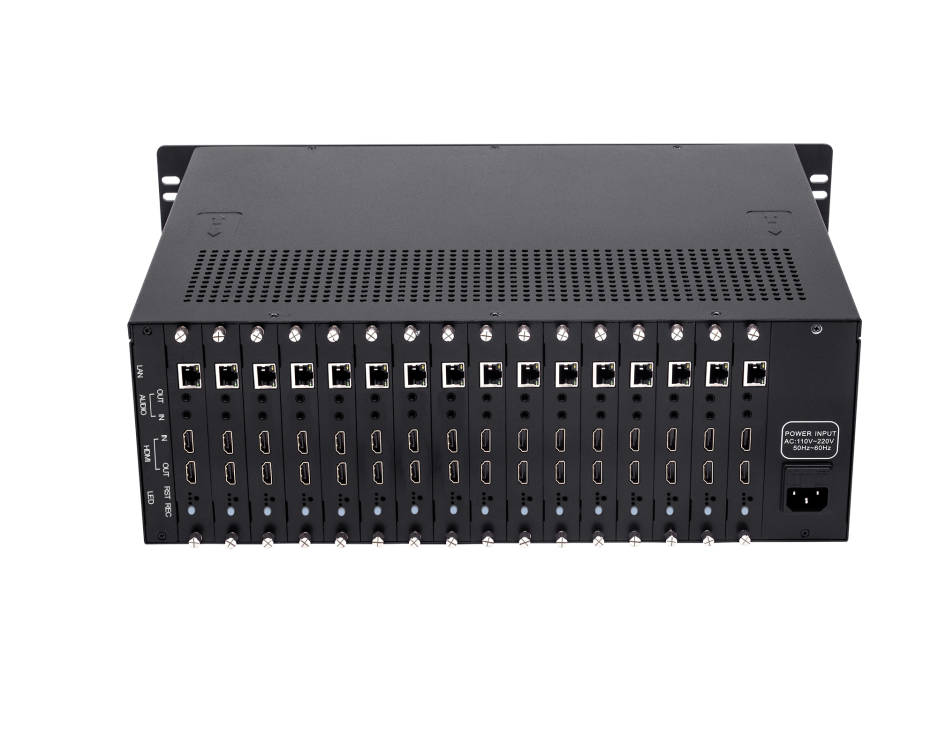

4 PCS one channel module card,each card with  1 HDMI input

1 channel HDMI signal input
1 channel 3.5 audio input
Output:
1 channel IP signal output
1 channel HDMI signal loop out


VIDEO ENCODING

Input resolution: 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i etc.
Coding standard: H.264/H.265
Encoding level: Level 1,Level 2,Level 3, Level 4,Level 5 (the higher the level,the greater the volatility of the code stream)
Encoding level: H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
H.265 MAIN PROFILE
Output resolution:1920*1080,1280*720,960*540,850*480,720*576,720*480,640*480、640*320,320*180
Video bit rate: CBR/VBR bit rate control, 16KBIT/S~12MBIT/S
Video frame rate: 5- 60fps
OSD:Word,Picture




FEATURES

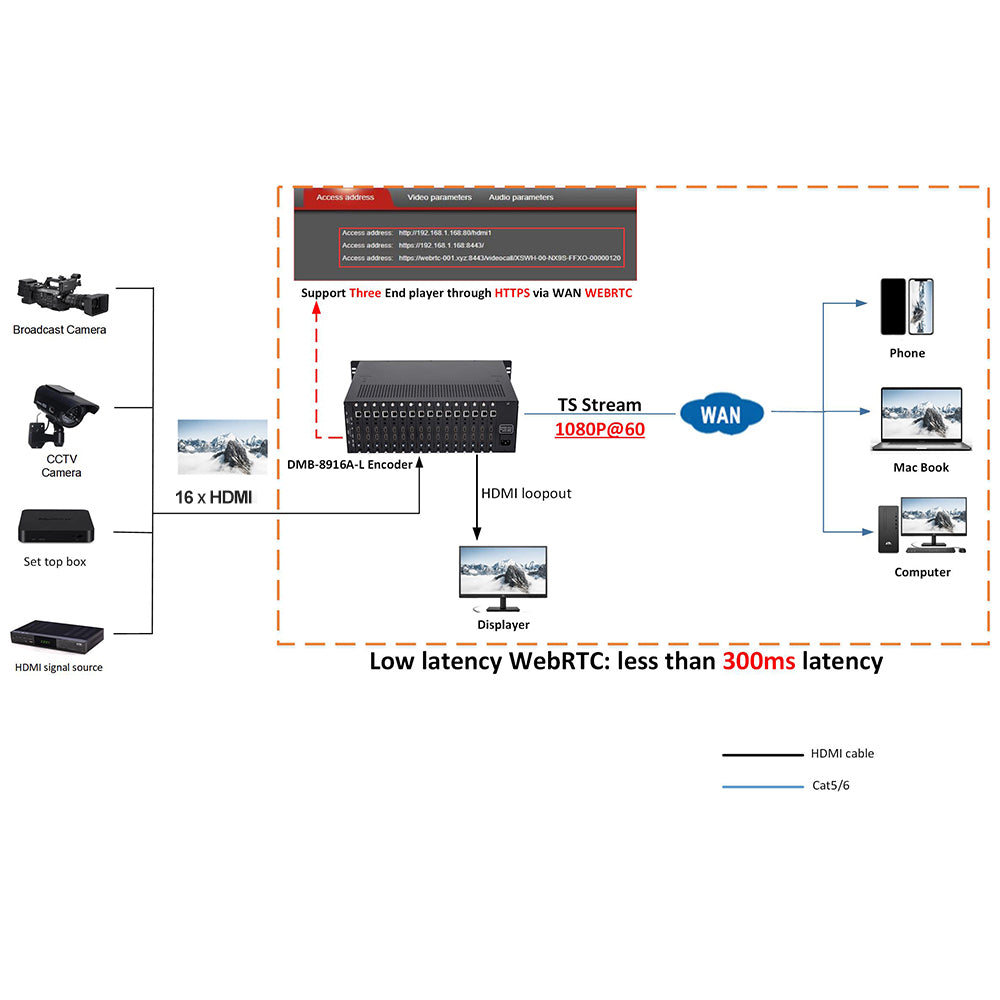

Ultra Low latency--Play by 3 terminals broswers with latency less than 300MS by HTTPS


1080P@ 60 FPS OUT , 16 pcs one HDMI input module card,each card each HDMI input with 4 streaming out with different protocol ,bitrate for multi-screen application
