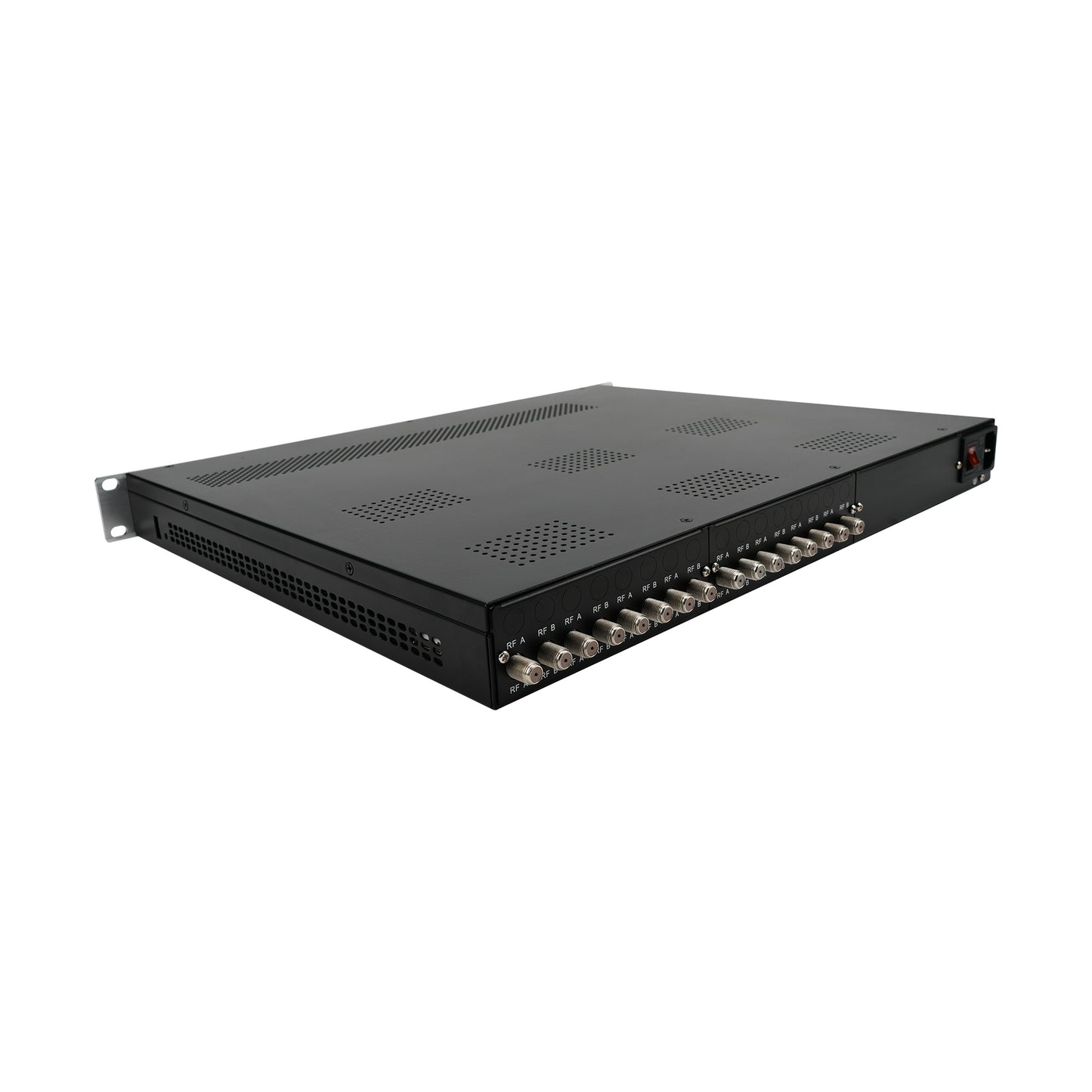

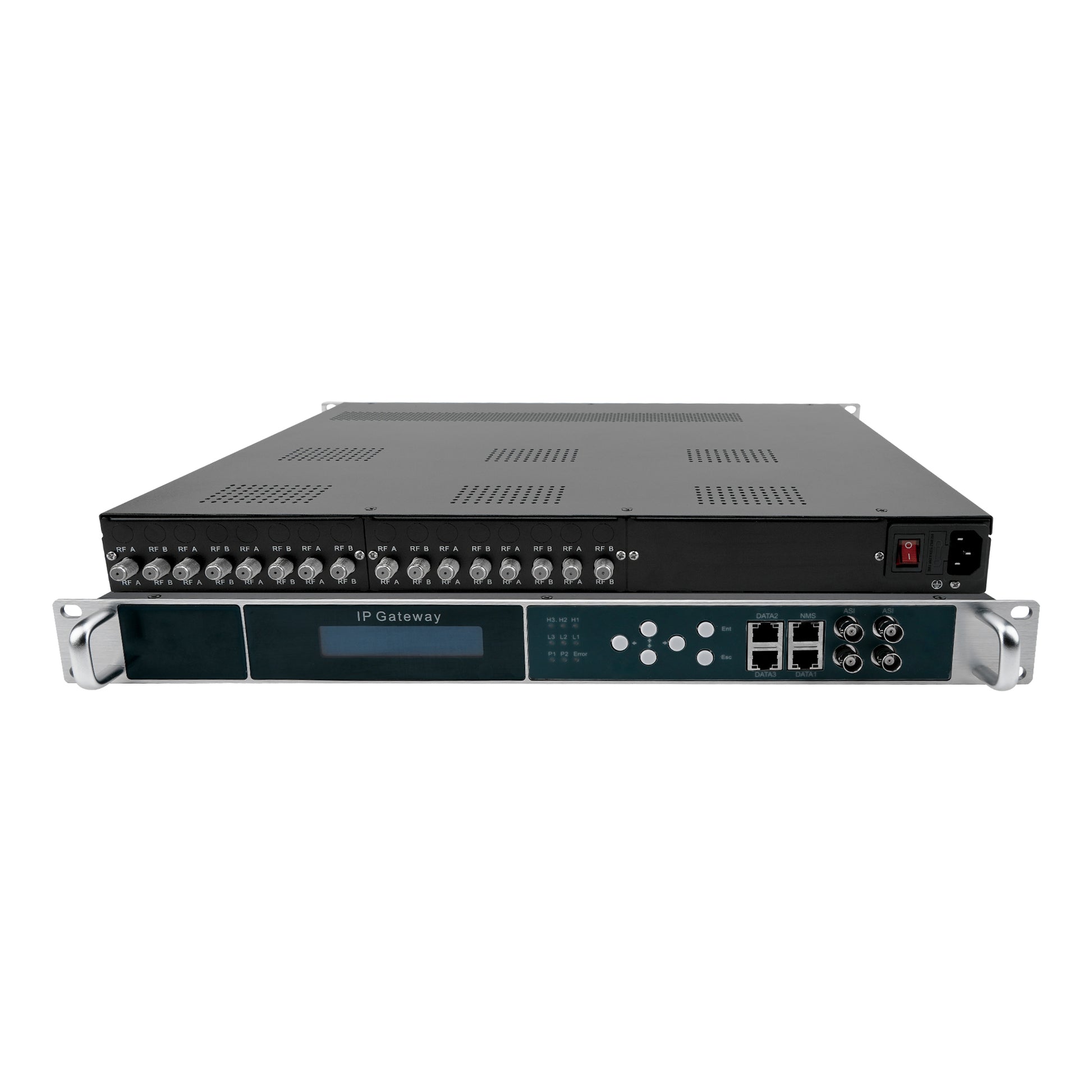

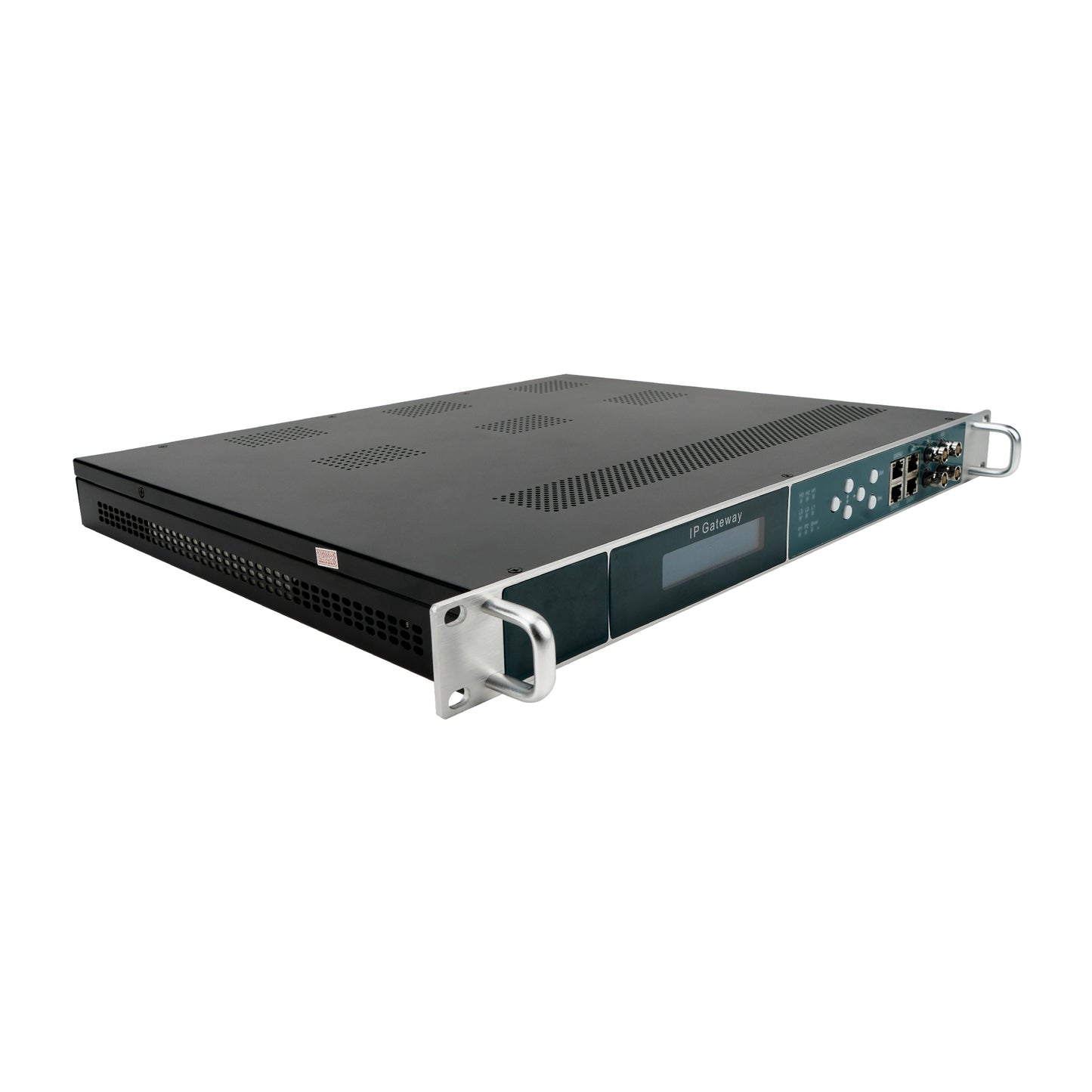

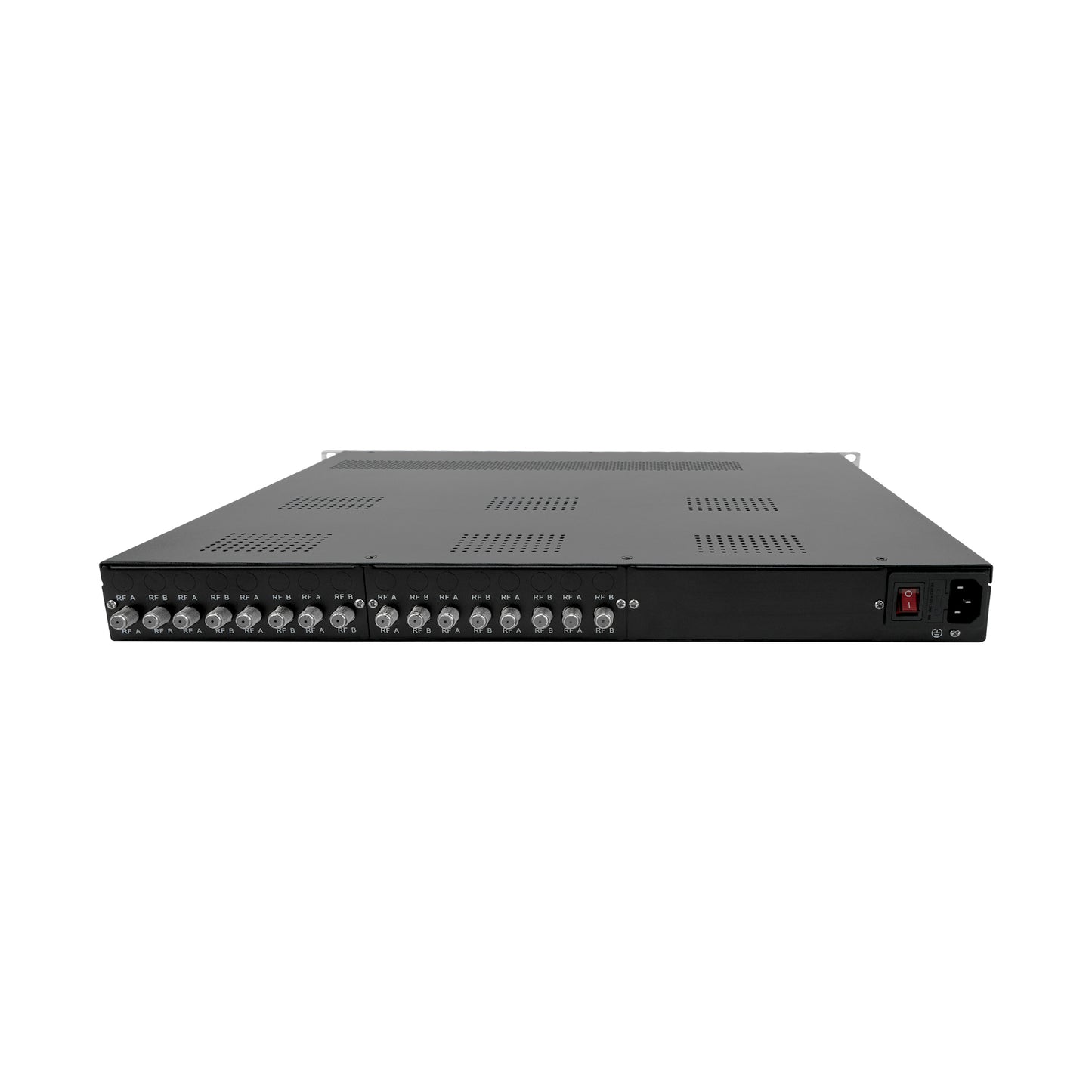

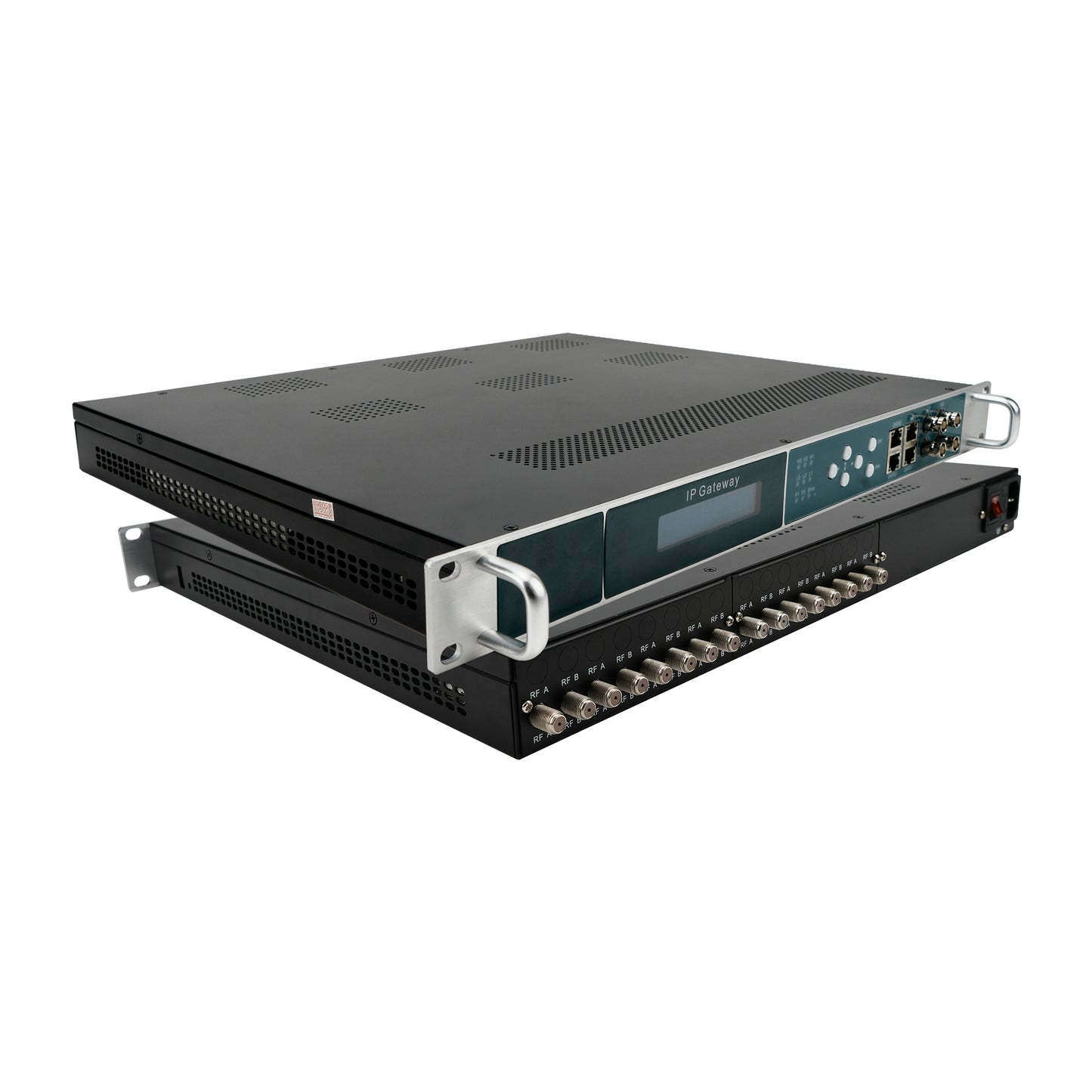

DMB-90E FTA 24 Frequency DVB T over IP Streamer Tuner to SRT HTTP HLS Gateway

DMB-90E FTA 24 Frequency DVB T over IP Streamer Tuner to SRT HTTP HLS Gateway

DVB Over IP Demodulator DVB-SS2 to HTTP SRT HLS Gateway

Model Number: DMB-90E

Overview

DMB-90E Series Multi-channels Professional Receiver, support 24 Independent Satellite DVB S/S2/S2X tuners/DVBT/ATSC/ISDB-T input to IP TS SPTS multicast or unicast outputs, has also 2 ASI inputs for external TS's sources. It is integrated with tuner demodulation, which can demodulates from 4/ 8/ 12/ 16/ 20/ 24 channel tuners, then output the IP package through different IP address and ports.

The tuners support DVB-S/S2/S2X/T/T2/C/ISDB-T/ATSC optional input, demodulate to TS and encapsulated output IP packet, IP with 3 Gigabit IP input/output (DATA1:IP output over RTMP/HTTP/RTSP/HLS/SRT protocol ;DATA2: IP output over UDP/RTP protocol; DATA3: 128 IP address inputs.

FEATURES

Input Version: 1: Up to 24 FTA Tuners input
2: Two*Types Tuners+HDMI input-- for example: 8 DVB-S/S2/S2X+8*DVB-T/T2+8*HDMI
3: One type tuner+ HDMI input: 12 DVBS/S2/S2X+8*HDMI
Max 24 channels input whatever which types input, pls consult with sales according your application.
2 Different Tuner standard option from DVB-S/S2/S2X, DVB-T/T2, DVB-C, DTMB, ISDB-T/Tb, ATSC-T
Operation via LCD Screen and Web Management: Easy to read LCD color front panel that makes it easy to setup and monitor your channels, check firmware, and identify IP addresses without a computer.
3 Gigabit IP input/output (DATA1:IP output over RTMP/HTTP/RTSP/HLS/SRT protocol ;DATA2: IP output over UDP/RTP protocol; DATA3: 128 IP address inputs,
Two separate ASI input for external TS multiplexing
GigE DATA port can be used for input and output
Capable of BISS descrambling
Low cost headend receiver for IPTV/OTT System
Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≥ 50000 Hours
Highly compact, High-Integrate
24*7 hours working stable, broadcasting quality


 DVB-T/T2 Tuner

Frequency range: 30MHz-1000Mhz
Bandwidth: 6Mhz, 7Mhz, 8Mhz
Level: -87 ~ -20dBm
Constellation: QPSK, 16QAM, 64QAM, 256QAM (Only DVB-T2)
FEC Demodulation: DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8
              DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Guard Interval: DVB-T: 1/4, 1/8, 1/16, 1/32
          DVB-T2: 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128

 DVB-ASI Input

Connector: BNC female, 75Ω
Signal level: 200-800mVp-p
Packet length: 188 bytes
Maximum bit-rate: per port ≤100Mbps
Number of input ports: Dual separate ASI ports


Multiplexing

Maximum PID remapping 180 input per channel
PID remapping by automatically or manually
PSI/SI: SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert
Accurate PCR adjusting

ASI I/O

DVB-ASI: 2 ASI input and output, 75Ω, BNC, 188Bytes
MPEG-2 TS over DVB-ASI (EN 50083-9)
ASI out: selectable mirror of one MPTS

IP I/O

RJ45 Port: 100/1000M GbE Port, 1*DATA port used for input and output
IP output: 3 Gigabit IP input/output (DATA1:IP output over RTMP/HTTP/RTSP/HLS/SRT protocol ;DATA2: IP output over UDP/RTP protocol; DATA3: 128 IP address inputs,
Configurable Packet size (2-7)x188 Bytes, filter null packet
SPTS limit selectable: 2.3M, 2.5M, 2.9, 3.3M, 3.8M, 4.6M, 5.7M, 7.6M, 11.5M, 23M

System

Local interface: LCD + control buttons
Configuration interface: Web-based
Remote upgrade: via network
Connector: RJ45, 100M/1000M Ethernet interface

Physical and Power
Voltage: 100 to 120/200 to 240V AC ±10%; 50/60Hz
Consumption: 60W
Operating temperature: 0~50°C
Storage temperature: -20 ~ 80℃
Dimensions: 483mm(W)*380mm(D)*44.5mm(H)
Weight: 9kg/pc
